The All-New Scott Lumen - LIGHT UP YOUR RIDE

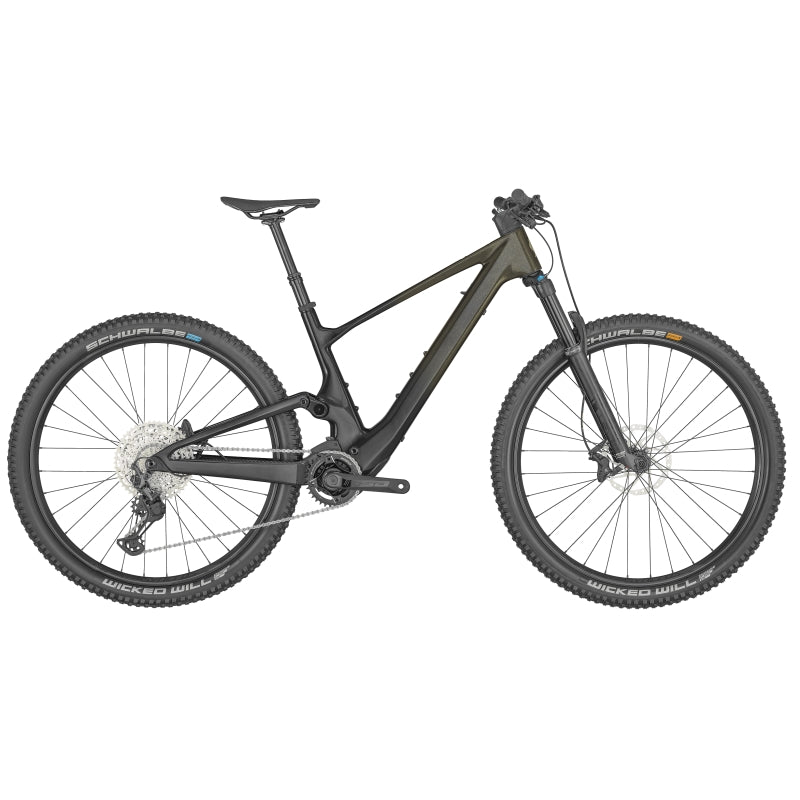

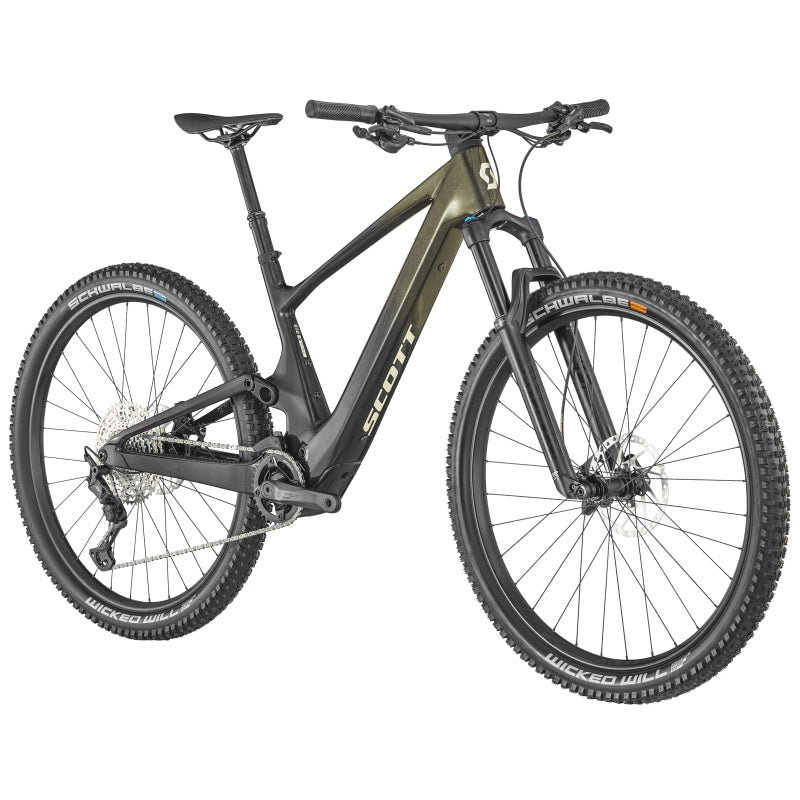

The Scott Lumen is a game-changing e-mtb weighing just 15.5kg. Yup, you read that right. the Scott Lumen takes the world's fastest xc/trail frame platform and adds completely silent and powerful electric assistance all while maintaining scott's legendary lightweight dna.
The ride feel is like a regular bike: no need to think about a longer braking distance, pedal drag or weight, as it's even possible to ride the bike with the assistance switched off. This is an e-bike for a mountain biker, with all the benefits of a regular bike, now with added assistance to get you up those hills faster to enjoy riding further and for even longer.
Compact Powerful Assistance
From the beginning, the objective was to create the lightest possible E-Bike and, after much investigation, it was clear that the TQ HPR50 was the ultimate solution for the SCOTT eRIDE R&D Team to achieve their goals.
TQ is a German company founded in 1994 who specialize in electric components across a range of industries including aerospace, medical and infrastructure. With the HPR50, they simply rewrote the rules, delivering
an unprecedented weight/power ratio of 1.8 kg for 50Nm.
With a diameter of 8 cm, TQ has innovated by using a harmonic gear system. This allows for a reduction of size, while also increasing the accuracy of the system. This results in a lighter bike, better integration, while reducing backlash for a more natural pedalling sensation. This technology also allows for the reduction in system noise for a truly natural experience.
After all, you are in the outdoors to, well, enjoy the outdoors.
A key aspect of the lightweight drive system is that it has allowed Scott to reach a complete bike weight of 15.5kg on the top spec model. This has an effect on power to weight for the Lumen, when compared to the traditional E-Bike which has a higher torque motor and bigger battery.
On all but the steepest climbs, the Lumen can actually be faster. On the descents, it gives you the feeling of a regular bike.
The system can be controlled via a minimalistic handlebar remote paired to the integrated top tube display. The modes are easy to switch through, and, thanks to the ergonomic placement on the handlebar, can be easily controlled whilst riding, as well as when using Walk Mode.
The TQ app offers real benefit and is easy to use. It's easy to connect, customize and control your TQ-powered e-bike with the TQ E-Bike app. The bike comes with a suggested SCOTT motor tune, with the app you can tune your drive unit to either save battery life or maximise the power output. You can alter the pedal response either for a faster motor uptake responseor to slow it down for a more natural feeling.
Lastly you can customize the display, altering the order and number of screens available, turn on and off control sounds etc. No buzz, no additional noise - simple essential information for when you and your E-Bike are on the go so you can ride more and enjoy the moment.
To maintain a clean cockpit, the TQ system puts the focus on a minimalistic display located in the top tube paired to a discrete shifter on the handlebar. At a glance, the LED display provides all the essential info, such as the battery level %, remaining KM range and even Watts, thanks to an integrated power meter. Want more? Link up your phone and dive deep using the TQ E-Bike app, available through the Apple App or Google Play Store. With an automatic Bluetooth connection, you can track your ride and customize your modes. Want to use it with a bike computer? That's no problem too. Utilizing the built in ANT+, the system easily connects with a bike computer such as a Garmin, Hammerhead or Wahoo unit.
Syncros Fraser 2.0 DC Alloy 6061 D.B., mini Rise / back sweep 8 deg / 760mm, Syncros Performance XC lock-on grips
Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6 deg head angle adjustment, ZS56/28.6-ZS56/40 MTB
SCOTT TwinLoc Suspension System, 3 modes front and rear / integ. Grip clamp
Syncros Tofino 1.5 Regular, Titanium rails
Syncros Duncan Dropper Post 2.0, 31.6mm / S & M size 125mm / L size 150mm / XL size 170mm
Syncros DC 2.0, Syncros Cable Integration System, 0 deg rise / 6061 Alloy / 31.8mm / 1 1/8
Shimano Deore M6120 4 Piston Disc, Front; SM-RT64 CL 180mm / Rear; RT-EM600 CL 180mm
Shimano CS-M6100 / 10-51 T
FSA Alloy crankset / 175mm / 34T / e*thirteen / e*spec Slider
Shimano XT RD-M8100 SGS, Shadow Plus / 12 Speed
Shimano Deore SL-M6100-IR / Rapidfire Plus, Ispec EV clamp
TQ, 360WH, 2.5 hour charge time 0-100%
TQ, Bluetooth & ANT +
TQ HPR50, 50NM, 300W, 1.85KG
Optional extra (sold separately) TQ, 160WH Supplied with bike, 950G
FOX 34 Float Rhythm Air Grip, 3-Modes / Kabolt 15x110mm axle / tapered steerer, 44mm offset / Reb. Adj. / Lockout / 130mm travel
Lumen eRIDE Carbon HMX, Integrated Suspension Technology, Flex Pivot / Adjustable head angle, Syncros Cable Integration System, TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline
FOX NUDE 5T EVOL Trunnion, SCOTT custom w. travel / geo adj., 3 modes: Lockout-Traction Control- Descend, Custom large Air volume / DPS / Reb. Adj., Travel 130-90-Lockout / T165X45mm
Front - Formula CL-811 / 15x110mm, Rear - Formula CL-148M / 12x148mm / Micro Spline
Schwalbe Wicked Will 29x2.4 EVO, Super Race / TLE / 67EPI / Addix Speed Soft
Schwalbe Wicked Will 29x2.4 EVO, Super Race / TLE / 67EPI / Addix Speed Grip
Syncros X-30SE / 32H / 30mm, Tubeless ready
Stainless Black 15G / 1.8mm
*Please note product specifications are subject to change.
